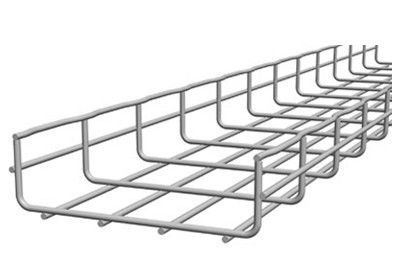

Wire Mesh Cable Tray

The cablofil cable tray system is designed for maximum flexibility, allowing for easy field cutting, bending, assembly and conveninent cable drop outs.


Dimensions: (Available for customized)
Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm..
Width: 50~1000mm
Length: Max. 3000mm
Wire diameter: 3.5~6.0mm
Cable Tray dimensions are all internal size.

Cablofil wire mesh cable tray material
Q235B Steel (Chinese standard steel), SS304, SS316 or SS316L

Surface Finish:
(1) Electro zinc plated- for indoor use to BS EN 12329-2000,
(2) Hot Dipped Galvanized- for outdoor use to BS EN 1461-1999
(3) Electrolytic Polishing -for stainless steel use.



Applications:
Wire Mesh Cable Trays are mainly used for low voltage, telecommunication, and fiber optic cables supported on short

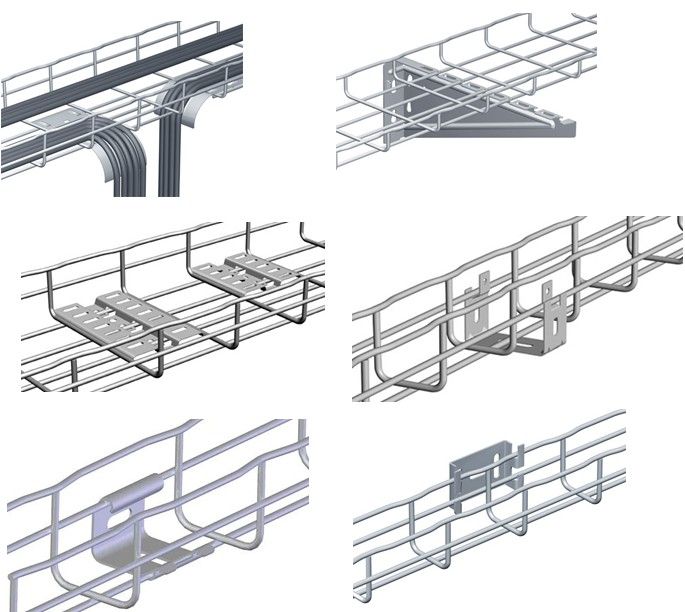

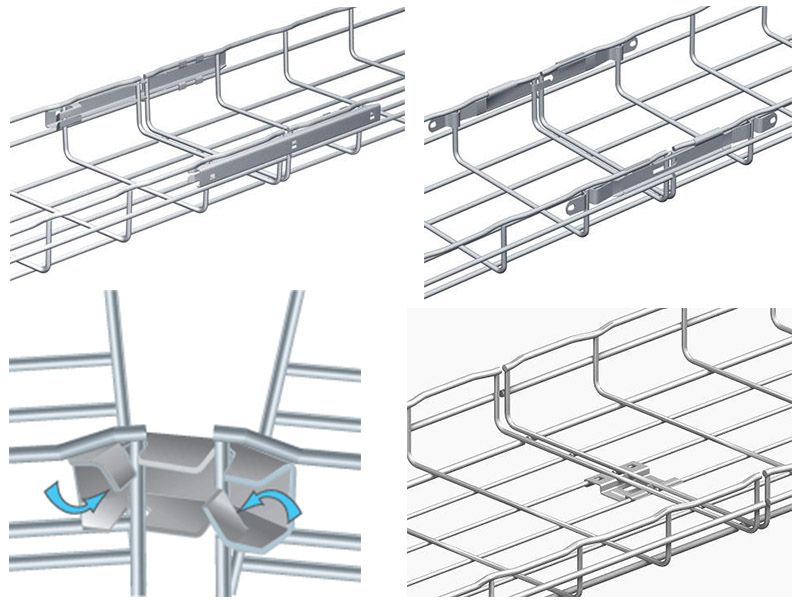

Accessories
