Semi-conductive insulator tie
Details

Semi-conductive double top ties

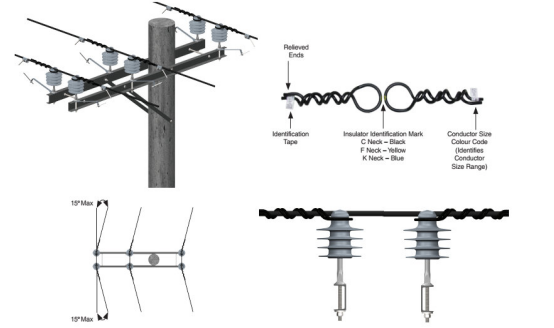

Description:Semi-conductive plastic double line ties/top ties are intended for use with covered conductors and vertically-mounted tie top insulators on crossarms or pole-top-mounted insulators. When utilised within double crossarm construction as illustrated, line angles from 0° to 30° can be comfortably accommodated.



Technical Data:

Model

Outer Diameter Range(mm)

Color code

C Neck

F Neck

K Neck

Min

Max

BDDB-57-1016

BDDB-73-1016

BDDB-101-1016

7.51

10.16

White

BDDB-57-1372

BDDB-73-1372

BDDB-101-1372

10.19

13.72

Green

BDDB-57-1854

BDDB-73-1854

BDDB-101-1854

13.74

18.54

Blue

BDDB-57-2337

BDDB-73-2337

BDDB-101-2337

18.57

23.37

Orange

BDDB-57-2794

BDDB-73-2794

BDDB-101-2794

23.39

27.94

Red

BDDB-57-3302

BDDB-73-3302

BDDB-101-3302

27.97

33.02

Black
