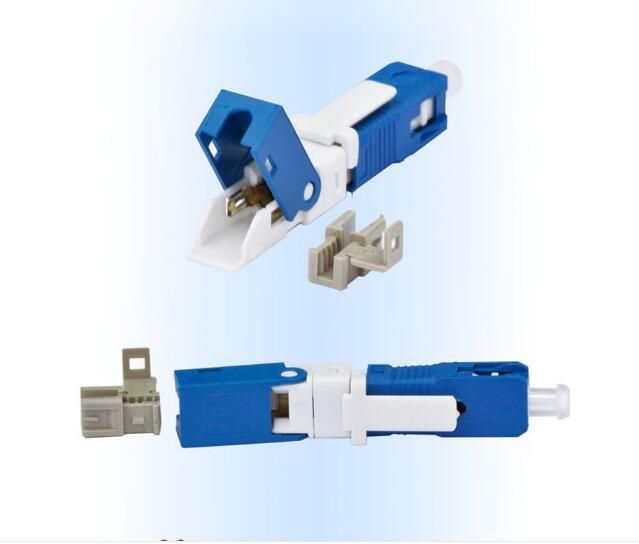

SC/UPC fiber optic fast connector H03

Field Assembly SC quick connector can provide a quick and easy of fiber in the field.Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber surface inspection.


FTTH, LAN, Reformation of ODF and the new patch cord of ODF on site

Technical data:

Must meet the standard

TIA/EIA 604-3

Operating Wavelength

1260nm-1650nm Insertion

Lost by insertion

£0.2dB/ < Max. < 0.5dB

Lost by Return

> 55dB

Operating Temperature

-40 a +80


1000 reconnection / ± 0.1dB


 (3Kg loading)

250um & 900um (0.75kg/ £0.3dB load)

Cable pull

1.6 mm £ 0.20dB @ 40N

2.0 mm £ 0.20dB @ 80 N

Moisture Resistance

< 2.0dB @ +60C @ 95%

Radius of the end of the splint (mm)

5 ~ 12

Fiber cutting

Less than 100

Fiber extrusion

Less than 100


Less than 50
