Dead end guy grips are designed to be applied directly to bare galvanized steel guy wire, overhead earthwire and wire rope. They must only be used once and will hold 100% of the guywire’s rated strength when correctly installed. Dead end guy grips are recommended for stay/guy terminations on wood/concrete pole distribution construction. They are suitable for stay rod, stay insulator and pole top attachment. Single, multiple and flying stays can be terminated.

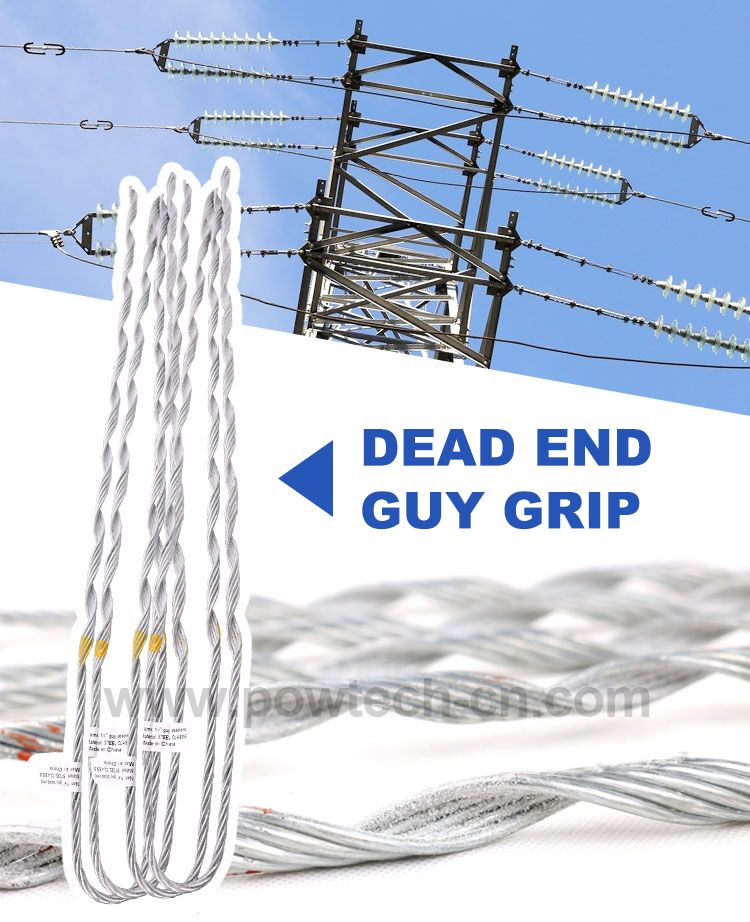

Galvanized Steel Helical Tension Clamp Preformed dead end guy grip
Dead end guy grips are designed to be applied directly to bare galvanized steel guy wire, overhead earthwire and wire rope. They must only be used once and will hold 100% of the guywire’s rated strength when correctly installed. Dead end guy grips are recommended for stay/guy terminations on wood/concrete pole distribution construction. They are suitable for stay rod, stay insulator and pole top attachment. Single, multiple and flying stays can be terminated.
Technical data
Table1 Preformed dead end grips
| Model | Guy wire(mm) | Length(mm) | Guy wire(mm2) | Weight(kg) | Color code |
| NL-25/G | 6.6 | 635 | 25 | 0.2 | Yellow |
| NL-35/G | 7.65~7.95 | 711 | 35 | 0.3 | Black |
| NL-50/G | 8.95~9.30 | 901 | 50 | 0.5 | Orange |
| NL-70/G | 10.00~11.50 | 1016 | 70 | 0.8 | Green |
| NL-95/G | 12.5 | 1333 | 95 | 1.7 | Orange |
| NL-100/G | 13.0 | 1333 | 100 | 1.7 | Yellow |
| NL-120/G | 14.0 | 1460 | 120 | 2.2 | Yellow |
Table 2 Preformed dead end grips
| Model | Strand size (inches) | Mean dia. (mm) | Length(mm) | Color code |
| NL-3/16 | 3/16 | 4.72, 4.95 | 508 | Red |
| NL-7/32 | 7/32 | 5.49 | 610 | Green |
| NL-1/4 | 1/4 | 6.58, 6.10 | 635 | Yellow |
| NL- 9/32 | 9/32 | 7.03 | 711 | Blue |
| NL-5/16 | 5/16 | 7.92, 7.92, 8.31 | 787 | Black |
| NL-3/8 | 3/8 | 9.04, 9.14 | 889 | Orange |
| NL-7/16 | 7/16 | 11.05 | 965 | Green |
| NL-1/2 | 1/2 | 11.66, 12.70 | Blue |
