PVC Single Top Plastic Insulator Ties are intended for use with covered conductors and vertically-mounted tie top insulators on cross arms or pole-top-mounted insulators.
Line angles of up to 15°can be accommodated when used with any plastic covered conductor.

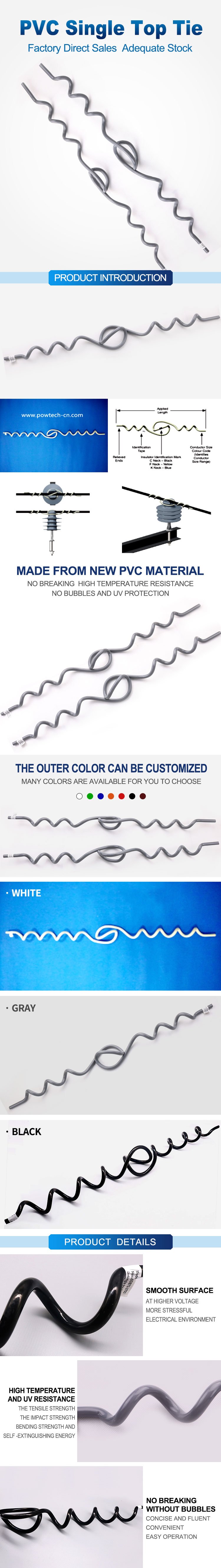

PVC Single Top Plastic Insulator Tie
Material:
PVC plastic ties are made from white PVC. This material has the advantages:UV resistance, tensile strength, impact strength, flexural strength and self-extinguishing properties.
Standard: IEC standard
Data sheet
Model | Conductor diameter range(mm) | Color code | |||
C Neck(Φ57mm) | F Neck(Φ73mm) | K Neck(Φ101mm) | Min | Max | |
PSDB-57-1016 | PSDB-73-1016 | PSDB-101-1016 | 7.52 | 10.16 | White |
PSDB-57-1372 | PSDB-73-1372 | PSDB-101-1372 | 10.19 | 13.72 | Green |
PSDB-57-1854 | PSDB-73-1854 | PSDB-101-1854 | 13.74 | 18.54 | Blue |
PSDB-57-2337 | PSDB-73-2337 | PSDB-101-2337 | 18.57 | 23.37 | Orange |
PSDB-57-2794 | PSDB-73-2794 | PSDB-101-2794 | 23.39 | 27.94 | Red |
PSDB-57-3302 | PSDB-73-3302 | PSDB-101-3302 | 27.97 | 33.02 | Black |
PSDB-57-3810 | PSDB-73-3810 | PSDB-101-3810 | 33.05 | 38.10 | Green |
